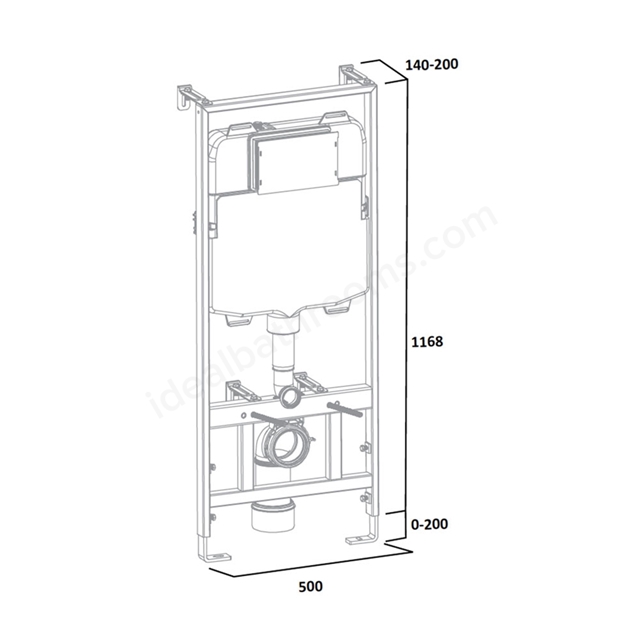

Tavistock Pneumatic Flush 1170mm x 500mm Wall Hung Installation Frame & Cistern

Description

The Tavistock Pneumatic Installation Frame; for Wall Hung Toilets; 1170mm High is part of the CORE range from Tavistock. This installation frame for wall hung toilets is built to last and finished to a very high standard. Consider adding this item to your order today.

• 1.17m high for in-wall applica ons
• Adjustable depth 140 - 200mm
• Adjustable height legs (200mm adjustment)
• 6/3L pneumatic flush valve and top entry 1/2 (male) inlet valve
• Front access; push plate position
• Polystyrene anti condensation jacket
• 0.2-10.0bar working pressure range
• Minimum depth for 'straight out' waste pipe routings is 110mm
• Brackets; fixings and 1st fix protective covers included

Specification
